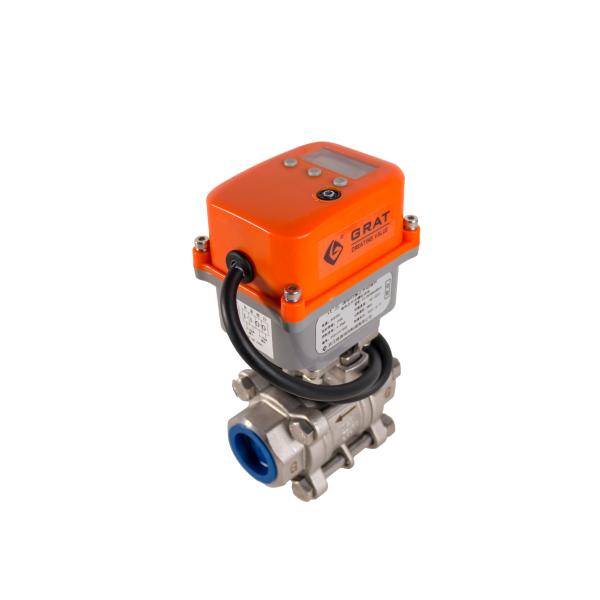

20NM Miniature Size Iot Electric Actuator For Stainless Steel
Thread Type Ball Valve With Display OLED
Product Description:
20NM Miniature Size Iot Electric Actuator /IP67/Thread Ball Valve
Description:
Electric screw ball valve lock covers the services of large
pressure drops and easy blocking to quickly switch and cut off the medium of pipeline, whose superior product
performance and cost-effective far exceeds the competitive products of solenoid valve.
EA-20 Compact Electric Actuator is the latest ultra-small electric
actuator developed by our company. It is used for valves with
angular stroke operation such as butterfly valves, ball valves, and
damper valves to control the opening, closing or adjusting the
valve opening. It is suitable for automation systems across various
sectors including food, environmental, paper, chemical, and power
industries.
Features:
* Low power consumption and high efficiency: It only requires 10W of power, saving energy costs and being able
to
work efficiently and stably at the same time.
* Smooth speed regulation: Adopting PWM stepless speed regulation ensures a stable operation
process of the actuator and provides more stable control.
* High-performance motor: The built-in brushless motor with overload protection is stable,
reliable and has a long service life.
* Real-time parameter display: The OLED real-time displays status and parameter information in
Chinese or English,
providing more real-time feedback and fault alarm information
during the use process.
* Precise control: The adjustable range is wide, from 30% to 100%, and it has a
control accuracy of 0.5%, precisely meeting the control
requirements of different occasions.
* Multiple feedback methods: It supports feedback methods of 4-20mA/0-10V/1-5V, ensuring the
accuracy of control.
