Dn15 - Dn600 Pneumatic Ball Valve Stainless Steel V Notch Ball Control Valve

Ask Lasest Price
Brand Name :	GRAT
Model Number :	AV-0000172
Certification :	CCC, ISO, CE
Payment Terms :	LC, T/T, D/P, PayPal, Western Union
Delivery Time :	3 working days
Supply Ability :	1000PCS/Month
Price :	USD $100.00/ Piece

Add to Cart

Product Details
Company Profile

Dn15 - Dn600 Pneumatic Ball Valve Stainless Steel V Notch Ball Control Valve

Pneumatic V-Notch Control Ball Valve

PRODUCT DESCRIPTION:

Pneumatic V-Notch Control Ball Valve/Pneumatic

Description:

Pneumatic V-notch control valve is a modulating device to regulat and cut off high temperature

steam,medium flow of anti-abrasion and self-cleaning such as mine pulp, paper pulp.

Specification:

Input signal		4~20mA DC
Output pressure		1.4~7kgf/cm²(0.14~0.7Mpa)
Stroke		0º~90º
Impedance		Max.460Ω/20mA DC
Air connection		PT(NPT)1/4
Pressure gauge connection		PT(NPT)1/8
Wiring conduit		PT1/2(G1/2)
Repeatability		±0.3%F.S.
Ambient	Operating Temp.	(-30°C~85°C)/(-22~185ºF)
Temperature	Explode-proof Temp.	(-40°C~60°C)T5/(-40~40°C)T6
Linearity		±0.5%F.S
Lag degree		±0.5%F.S
Sensitivity		±0.2%F.S
Air consumption		Less than 2LPM(Air pressure=1.4K)
Flow coefficient		70LPM
Output properties		quick switch, Linear, EQ%, user-defined(16point)
Material		Die-casting aluminum
Protection level		IP68
Explode-proof level		Exia IIC T6/T5
Weight		1.5kg(3.31b)

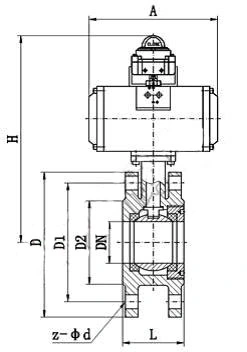

Figure and Conection Size:

Valve size DN(mm)	Size(mm)
Valve size DN(mm)	L	D	D1	D2	B	F	Z-φd
15	35	95	65	45	14	2	4-M12
20	38	105	75	55	14		4-M12
25	42	115	85	65	14		4-M12
32	50	135	100	78	16		4-M16
40	60	145	110	85	16		4-M16
50	70	160	125	100	16	3	4-M16
65	95	180	145	120	18		4/8-M16
80	118	190	160	135	20		8-M16
100	140	215	180	155	20		8-M16
125	175	245	210	185	22		8-M16
150	210	280	240	210	24		8-M20

The flow figure of several typical section shape and flow characteristics

Packing & Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
