Fluorine Dn80 Chemical Resistant Floating 3 Way Electric Ball Valve

Ask Lasest Price
Brand Name :	GRAT
Model Number :	ET-00002
Certification :	IP67,CCC, ISO, CE
Price :	USD $100.00/ Piece
Payment Terms :	LC, T/T, D/P, PayPal, Western Union
Supply Ability :	1000PCS/Month
Delivery Time :	3 working days

Add to Cart

Product Details
Company Profile

Fluorine Dn80 Chemical Resistant Floating 3 Way Electric Ball Valve

Dn80 Fluorine Chemical Resistant Floating 3 Way Electric Ball Valve

Product Description:

Dn80 Fluorine Chemical Resistant Floating 3 Way Electric Ball Valve/IP67/Fixed Ball Valve

Description:
Dn80 Fluorine Chemical Resistant Floating 3 Way Electric Ball Valve

Electric 3 way control valve is specially suitable for the small installation space to cover many services of

air conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical

instruments, smoke sampling.

Specification:

Power supply	AC24V,DC24V,AC110,AC220V,AC380V
Valve size	DN15~200
Medium Temp	0°C-95°C
Ambient Temp	-30°C~+60°C
Operating pressure	PN16
Action mode	Switch to cut off,0-90°gyration
Power consumption	8VA-30VA
Body connections	Inside thread
Body material	SUS304,SUS316
Seal material	PTFE,EPDM
Actuator material	Casting Aluminum alloy
Applicable working condition	Air-conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instruments, and smoke sampling
Installation mode	in any angle. (Prefer to horizontal or inclined installation to extend the service life.)

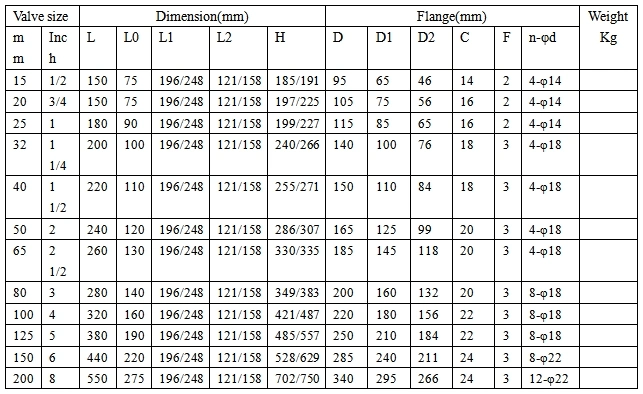

Figure and connection size
Dn80 Fluorine Chemical Resistant Floating 3 Way Electric Ball Valve

Constrol Diagram:

FEP Fluorine Electric Ball Valve

Model	Circuit	Model	Circuit
S	ON/OFF,no output signal	CPT	ON/OFF,output 4~20mA signal
MS	ON/OFF,output passive contact signal	PCU	Regulation,output 4~20mA signal

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
