Carbon Steel Cast Iron with Fluorine Electric Ball Valve for Acid
Alkali Liquid
Product Description:
Carbon Steel Cast Iron with Fluorine Electric Ball Valve for Acid
Alkali Liquid/IP67/Floating Ball Valve

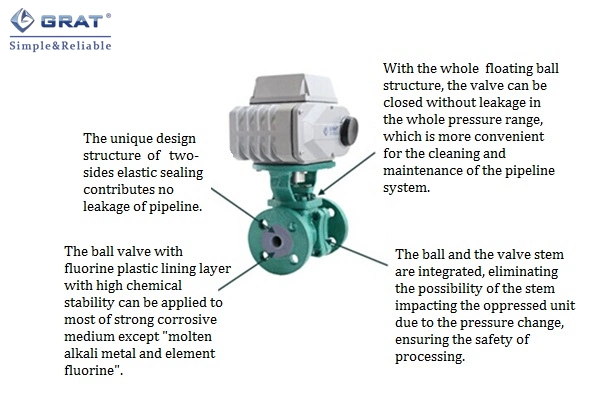

Description:
The fluorine electric ball valve is designed to switch and cut off
various strong corrosive medium
which is widely applied in petroleum chemical pesticide dye acid
alkali and so on and which is the most
ideal choice for anti-corrosion equipment at present.
This valve which adopts polytetrafluoroethylene (FEP) as
anti-corrosion lining material has very
superior anti-corrosion and abrasion resistance. The unique
structure for lip type elastic seal parts
well extends the service life of the products.
Specification:
| Power supply | AC220V/AC380V,/DC24V |
| Valve size | DN15-350 |
| Medium Temp | -15ºC ~ 150ºC |
| Operating pressure | PN1.0~2.5(MPa) |
| Action mode | Switch to cut off,0-90° gyration |
| Action time | 4-30S |
| Body connections | Flange |
| Body material | WCB,ZG1CrM0,ZG1Cr18Ni9Ti, SS304,SS316 |
| Seal material | polytetrafluoroethylene (FEP) |
| Actuator material | Casting aluminum alloy |
| Applicable medium | Acid, alkali, salt, chlorine gas, steam, source water, mine pulp
and paper pulp, aqua regia, oxidant, corrosive chemical liquid |
The material of the main parts
Part name |
Body |
Bonnet |
Stuffing box |
Gland ring |
Seat |
Packing |
Spanner |
Material
Trademark |
WCB
ZG1CrM0
ZG
1Cr18Ni9Ti |
WCB
ZG1CrM0
ZG
1Cr18Ni9Ti |
WCB
40Cr
ZG
1Cr18Ni9Ti |
WCB
ZG1CrM0
ZG
1Cr18Ni9Ti |
FEP |
FEP |
WCB |
Applicable channeling medium
Medium state |
Medium Temp. |
Medium pressure |
Medium characteristics |
Medium concentration |
Medium name |
Liquid |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
Unlimited |
Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper
pulp, aqua regia, oxidant, reducing agent. |
Gas |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
Unlimited |
Mixture of liquid and solid |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
<60% |
The properties parameters Body ratings
Body ratings
(PN) | Strength (MPa) | Seal (MPa) | lining insulation test voltage |
| 1.0 | 1.6 | 2.5 | 1.0 | 1.6 | 2.5 |
| Test pressure value | 1.5 | 1.82 | 2.6 | 1.1 | 1.7 | 2.5 | 20KV |
Note: Not include Oxygen hydrogen natural gas coal gas combustible
gas combustion-supporting gas
Product information:
Main connection size
Design standard:HG/T 20592
Flange standard:HG/T20592 Unit:(mm)
Inside nominal diameter

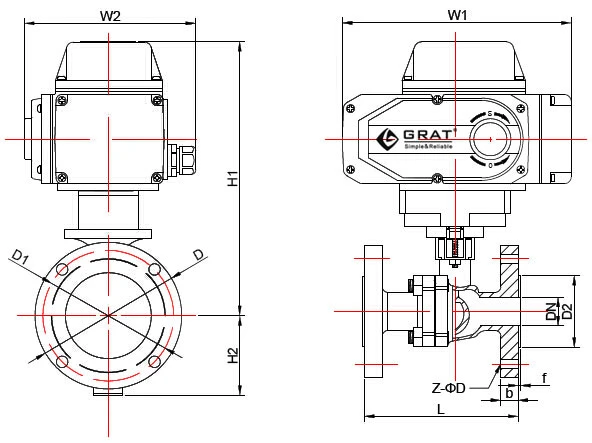

(DN) | Diameter (Inch) | L | D | D1 | D2 | b | f | Z-ΦD | H1 | H2 | W1 | W2 |
| 15 | 1/2" | 130 | 95 | 65 | 45 | 16 | 2.5 | 4-14 | 216 | 47.5 | 196 | 145 |
| 20 | 3/4" | 140 | 105 | 75 | 55 | 18 | 2.5 | 4-14 | 231 | 52.5 | 196 | 145 |
| 25 | 1" | 150 | 115 | 85 | 65 | 19 | 3 | 4-14 | 236 | 57.5 | 196 | 145 |
| 32 | 1.2" | 165 | 140 | 100 | 78 | 19 | 3 | 4-18 | 256 | 70 | 196 | 145 |
| 40 | 1.5" | 180 | 150 | 110 | 85 | 19 | 3.5 | 4-18 | 261 | 75 | 196 | 145 |
| 50 | 2" | 200 | 165 | 125 | 100 | 19 | 3.5 | 4-18 | 271 | 82.5 | 196 | 145 |
| 65 | 2.5" | 220 | 185 | 145 | 120 | 19 | 3.5 | 4-18 | 303 | 92.5 | 255 | 182 |
| 80 | 3" | 260 | 200 | 160 | 135 | 20 | 3.5 | 8-18 | 358 | 100 | 255 | 182 |
| 100 | 4" | 280 | 220 | 180 | 155 | 21 | 4 | 8-18 | 383 | 110 | 255 | 182 |
| 125 | 5" | 320 | 250 | 210 | 185 | 23 | 4 | 8-18 | 403 | 125 | 255 | 182 |
| 150 | 6" | 360 | 285 | 240 | 210 | 25 | 4 | 8-22 | 433 | 142.5 | 255 | 182 |
| 200 | 8" | 400 | 340 | 295 | 265 | 25 | 4 | 12-22 | 476 | 170 | 255 | 182 |
| 250 | 10" | 450 | 405 | 355 | 320 | 26 | 4 | 12-26 | 555 | 225 | 354 | 273 |
| 300 | 12" | 500 | 460 | 410 | 375 | 28 | 4 | 12-26 | - | 250 | 354 | 273 |
| 350 | 14" | 610 | 520 | 470 | 435 | 29 | 5 | 16-26 | - | 305 | 354 | 273 |
Standard of products
| Design and manufacturing standards | GB12237-89 AP16D |
| Flange standards | JB79 GB9113 ANSI B16.5 JIS B2212 |
| Structure length standards | GB1221-89 |
| Inspection standards | JB/T 9092 API598 |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
