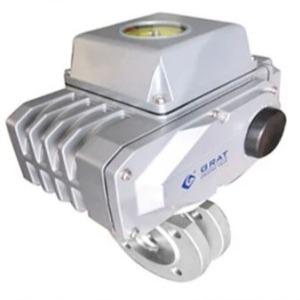

Electric Water Supply Control Valve

Ask Lasest Price
Brand Name :	GRAT
Model Number :	EDN15-200
Certification :	CCC, ISO, CE, RoHS,CNAS
Payment Terms :	LC, T/T, D/P, PayPal, Western Union
Supply Ability :	1000PCS/Week
Delivery Time :	3 working days
Price :	To Be Negotiated

Add to Cart

Product Details
Company Profile

Electric Water Supply Control Valve

Electric Water Supply Control Valve

PRODUCT DESCRIPTION:

Electric Water Supply Control Valve/ball valve/Wafer/Flange

Description:

2016 New Grat Electric Proportional Control Valve

specification:

Valve size	DN15~DN100
Power supply	AC220V,AC380V, DC24V
Temp.	≤220ºC
Ambient temp.	-30ºC-60ºC
Body rating	0.1~4.0MPa
Purpose	Quick open and close
Action time	4S/7S(optional)
Applicable medium	Water,Oil,Gas
End connection	Flange, thread
Seal type	two-sided sphere seal(zero leakage)
Test pressure	Body test	1.76MPa

	Seal test	2.4MPa

Body material	WCB,SUS304,SUS316
Seal ring material	EPDM,PTFE,PPL,metal seat
Protection level	IP67
Manufacturing standard	GB12237-89 AP16D
Flange standard	JB79 GB9113 ANSI B16.5 JIS B2212
Structure and length standard	GB1221-89
Inspection standards	JB/T 9092 API598

Installation Size

Electric Water Supply Control Valve

DN		L	D	K	D1	N-Md	B	I	H1	H2	W1	W2	Weight Kg
mm	inch	L	D	K	D1	N-Md	B	I	H1	H2	W1	W2	Weight Kg
15	1/2″	35	95	65	46	4-φM12	9	2	234	196	145	196	5.6
20	3/4″	38	100	75	56	4-φM12	12	2	242	196	145	196	6
25	1″	42	110	85	66	4-φM12	12.7	2	218	196	145	196	5.8
32	11/4″	52	133	100	78	4-φM16	14	3	231	196	145	196	6.7
40	11/2	61	145	110	87	4-φM16	15	3	238	196	145	196	7.6
50	2	73	160	125	99	4-φM16	16.7	3	251	196	145	196	8.7
65	21/2″	92	180	145	118	4-φM16	17.2	3	265	196	145	196	16.8
80	3″	109	195	160	136	8-φM16	19	3	298	255	184	255	18.6
100	4″	140	215	180	156	8-φM16	18.5	3	310	255	184	255	21.2

Connection diagram

2016 New Grat Electric Proportional Control Valve

Packing & Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
