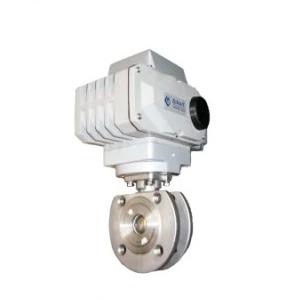

    IP67 Electric Actuated Ball Valve Stainless Steel Flange Connection O Port Ball Valve

    Ask Lasest Price
    Brand Name : GRAT
    Model Number : EV-000066
    Certification : IP67,CCC, ISO, CE,CNAS
    Price : USD $100.00/ Piece
    Payment Terms : LC, T/T, D/P, PayPal, Western Union
    Supply Ability : 1000PCS/Week
    Delivery Time : 3 working days
    • Product Details
    • Company Profile

    IP67 Electric Actuated Ball Valve Stainless Steel Flange Connection O Port Ball Valve

    IP67 Stainless Steel Flange Connection O Port Electric Ball Valve


    Product Description:


    Stainless Steel O Port Electric Ball Valve/IP67/Fixed Ball Valve


    Description:
    Stainless Steel Flange Electrical Control Ball Valve


    Quick switch electric ball valve is widely used in the technical piping of large pressure drops and easy

    blocking to quickly switch and cut off the medium of pipeline. This series can fully satisfy the requirements

    to quickly switch and cut off the medium to realize the control over the technical parameters of pressure,

    flow, temperature, and the level of liquid. The superior technical performance makes the product widely apply

    in various industrial fields of industrial boiler, water supply and pipeline transmission to cut off pipeline medium.

    Specification:


    Power supplyAC220V 50/60HZ
    Body ratingsDN15-100
    Medium TempBelow 220 Celsius degree
    Ambient TempBelow 50 Celsius degree
    Operating pressurePN16, PN25, PN40
    Action modeSwitch to cut off
    Body connectionsFlange type, connecting thread
    Body materialStainless steel SUS304SUS316Carbon steel/ Casting steel WCB
    Plug materialStainless steel SUS304SUS316Carbon steel/ Casting steel WCB
    LeakageCompliance with the standards ANSIB16.104 5
    Seal typeTwo-sided sphere seal
    Applicable mediumWater, oil, gas
    Protection levelIP67
    Dead zone0.5%
    Repeatability error0.5%
    Manufacturing standardsJB/T8692-1998

    The material of the main parts


    Part nameBodyBonnetStuffing boxGland ringSeatPackingSpanner

    Material

    trademark

    WCB

    ZG1CrM0

    ZG

    1Cr18Ni9Ti

    WCB

    ZG1CrM0

    ZG

    1Cr18Ni9Ti

    WCB

    40Cr

    ZG

    1Cr18Ni9Ti

    WCB

    ZG1CrM0

    ZG

    1Cr18Ni9Ti

    FEPFEPWCB


    Applicable leading medium


    Medium stateMedium Temp.Medium pressureMedium characteristicsMedium concentrationMedium name
    Liquid-80ºC~+160ºC0~20kg/cm2Strong corrosion, high scour sharpenunlimitedAcid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent.
    Gas-80ºC~+160ºC0~20kg/cm2Strong corrosion, high scour sharpenunlimited
    Mixture of liquid and solid-80ºC~+160ºC0~20kg/cm2Strong corrosion, high scour sharpen<60%

    Control Diagram


    Stainless Steel O Port Electric Ball Valve

    ModelCircuitModelCircuit
    SON/OFF,no output signalCPTON/OFF,output 4~20mA signal
    MSON/OFF,output passive contact signalPCURegulation,output 4~20mA signal
    PIUON/OFF,output 0~1000Ω signalGON/OFF,output passive contact signal
    SPON/OFF,middle position controlHON/OFF,output passive contact signa

    Packing & Shipping:

    1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
    2.Transportation:by sea, by air,by train.
    If you have other requirements, please feel free to tell us.
