Fluorine Anti Corrosive Electric Actuated Butterfly Valve Dn40 - Dn1000 Mid Pressure

Ask Lasest Price
Brand Name :	GRAT
Model Number :	EB-0000163
Certification :	CCC, ISO, CE, TUV
Payment Terms :	LC, T/T, D/P, PayPal, Western Union
Supply Ability :	1000PCS/Month
Delivery Time :	7 working days
Price :	USD $100.00/ Piece

Add to Cart

Product Details
Company Profile

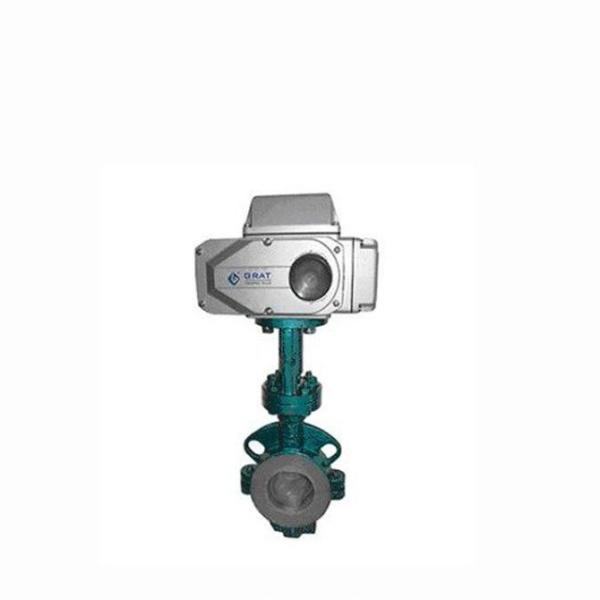

Fluorine Anti Corrosive Electric Actuated Butterfly Valve Dn40 - Dn1000 Mid Pressure

Fluorine Anti-corrosive Electric Butterfly Valve

Product Description:

Fluorine Electric Butterfly Valve/Anti-corrosive

Description:
Gas Low-Load Electric Butterfly Valve

Fluorine butterfly valve adopts a fluorine plastic lining disc with spherical sealing surface, and is matched

with a silicone gasket on the bottom of the seat to regulate the sealing performance of valve. This butterfly

valve adopts polytetrafluoroethylene (fep) as anti-corrosion lining material which has very superior

anti-corrosion and abrasion resistance.

Specification:

Power supply	AC220V
Body ratings	Dn40-1000
Medium temp	-50~160 celsius degree (no congelation)
Operating pressure	Pn1.0~1.6(mpa)
Action mode	switch to cut off, 0-90 degree gyration
Action time	4 ~ 30s
Body connections	flange, wafer
Body material	wcbqt450-10, ht200, ht250
Disc material	wcbqt450-10, ht200, ht250
Seal ring	ptfe
Actuator material	casting aluminum alloy
Design specification	gb/t 12238 / api 609 / mss sp-67
Applicable medium	vitriol, phosphoric acid, chlorine, alkali, aqua regia and other strong corrosive media.

The material of main parts

Part name	Body	Disc	Stuffing box	Gland ring	Seat	Packing	Stem
Material trademark	WCB ZG1CrM0 ZG 1Cr18Ni9Ti	WCB Stainless steel or lining	WCB 40Cr ZG 1Cr18Ni9Ti	WCB ZG1CrM0 ZG 1Cr18Ni9Ti	FEP	FEP	2Cr13

Applicable channelizing medium

Medium state	Medium Temp.	Medium pressure	Medium characteristics	Medium concentration	Medium name
Liquid	-50ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	unlimited	Acid, alkali, salt, chlorine gas, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reductant.
Gas	-50ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	unlimited
Mixture of liquid and gas	-50ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	<60%

Control Diagram

Fluorine Electric Butterfly Valve

odel	Circuit	Model	Circuit
S	ON/OFF,no output signal	CPT	ON/OFF,output 4~20mA signal
MS	ON/OFF,output passive contact signal	PCU	Regulation,output 4~20mA signal

Packing & Shipping:

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
