Pneumatic Control WCB Butterfly Valve DN15 - DN600 Auto Sealed Oil Media

Ask Lasest Price
Brand Name :	GRAT
Model Number :	AB-0000181
Certification :	CCC, ISO, CE, TUV
Delivery Time :	3 working days
Payment Terms :	LC, T/T, D/P, PayPal, Western Union
Supply Ability :	1000PCS/Month
Price :	USD $100.00/ Piece

Add to Cart

Product Details
Company Profile

Pneumatic Control WCB Butterfly Valve DN15 - DN600 Auto Sealed Oil Media

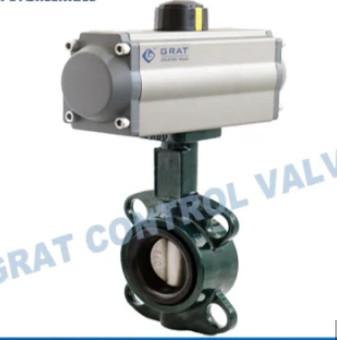

Pneumatic Control WCB Butterfly Valve

Product Description:

Pneumatic Control WCB Butterfly Valve

Description:

With simple structure, light weight, quick opening speed, pneumatic wafer switch butterfly valve consists of the piston type cylinder and the wafer type butterfly valve, and the spring return type valve can support automatic reposition function (air to open and close) when the air and power were cut off. This product is widely applied in the industrial pipeline fields of metallurgy, environmental protection, water treatment, petrochemical, power.

Specification:

Valve size	DN15~DN600
Medium temp.	-30ºC-180ºC
Body rating	PN1.6-2.5MPa
Applicable medium	Neutral gas, liquid
Air supply	0.4~0.7MPa
Actuator seal	Fluorine rubber
Actuator material	Casting aluminum alloy
Connection	Wafer
Flow property	On-off
Body material	SUS304,SUS316,WCB,QT450-10
Disc material	SUS304,SUS316,WCB,QT450-10
Seat	PTFE,EPDM
Packing	Graphite
Manufacturing standard	JB/T8692-199
Design standard	GB12237-89 AP16D
Inspection standard	JB/T 9092 API598

Installation size drawing
Pneumatic Control Wcb Butterfly Valve

alve size	Cylinder	D	K	L	L1	L2	H2	H1	4XΦD	Weight kg
DN/mm	Φ	D	K	L	L1	L2	H2	H1	4XΦD	Weight kg
50	75	92	125	42.6	206	103	70	260	4-Φ18
65	83	106	145	45.6	262	109	76	243	4-Φ18
80	92	122	160	45.6	270	122	89	308	8-Φ18
100	105	150	180	51.6	301	143	104	345	4-Φ22
125	125	177	210	55.6	392	152	120	383	4-Φ22
150	140	204	240	55.6	460	174	132	427	4-Φ23
200	160	260	295	59.6	515	205	167	503	4-Φ23
250	190	314	355	67.6	560	226	202	567	4-Φ28
300	210	370	410	77.6	654	260	239	630	4-Φ28
350	240		470	77	725	294	277.5	724	4-Φ28
400	270		525	86.5	742	380	309	787	4-Φ30
450	300		585	105.6	865	430	337	858	4-Φ30
500	350		650	131.8	925	516	361	916	4-Φ33
600	350		770	152	925	516	459	998	4-Φ36

Accessory
Pneumatic Control Wcb Butterfly Valve

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
