3 Way Multi Control Stainless Steel Ball Valve with Electricity Motorized Actuator

3 Way Multi Control Stainless Steel Ball Valve with Electricity Motorized Actuator

Product Description:

3 Way Multi Control Stainless Steel Ball Valve with Electricity Motorized Actuator /IP67/ V Type Ball Valve

Description:
T Shape Channel 3 Way Stainless Steel Electric Ball Valve
With the excellent regulation performance, V Type electric control ball valve is widely applied

in various industrial fields of petroleum and chemical, fine chemical, papermaking, metallurgy,

boiler feed water to realize the high precision regulation.

Features:

* Control characteristics
* 100000 times long service life
* The patent positioning technology
* Miniature design
* Good seal performance
* The valve owns a self-cleaning function to effectively guarantee the piping circulating
* High modulation precision

Specification:

Valve size	DN15-DN200
Body rating	PN1.6~6.4MPa
Body connections	Flange
Seat type	PTFE Soft seal
Body material	SUS304/SUS316/WCB
Plug material	SUS304/SUS316/WCB
Action time	15S/30S
Power supply	AC220V/AC380V/DC24V
Control signal	4~20mA/0~5V
Output signal	4~20mA/0~5V
Operating pressure	PN1.6Mpa/PN2.5Mpa/PN6.4Mpa
Medium Temp	≤220ºC
Ambient Temp	≤50ºC
Flow coefficient(CV)	Please download the data on our website for reference
Applicable medium	Food, lubrication, fibrous liquid, water, oil, gas
Dead zone	0.5%
Repeatability error	0.5%

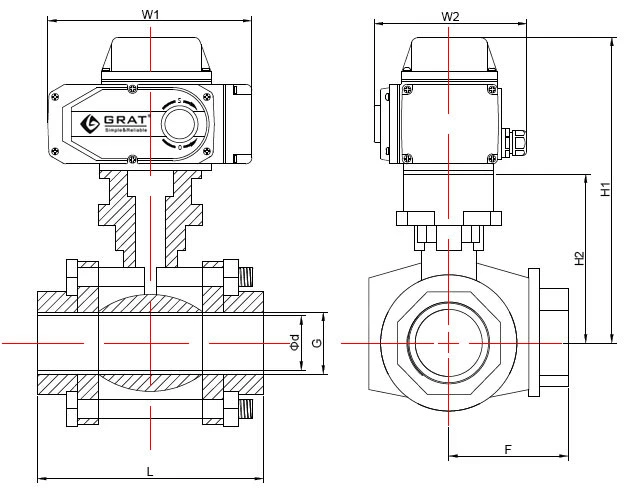

Installation Size

Diameter (DN)	L	G	Φd	F	H1	H2	W1	W2
12	70	Thread Standard: NPT BSP DIN etc	12	40	196	38	196	145
15	83		15	42	198	40	196	145
18	89		18	54	208	50	196	145
25	116		25	60	217	59	196	145
32	134		32	68	228	70	196	145
38	152		38	84	232	74	196	145
50	200		50	98	251	93	196	145
65	240		65	106	302	110	255	182
80	278		80	114	325	133	255	182

Installation Diagram

T Shape Channel 3 Way Stainless Steel Electric Ball Valve

Packing & Shipping:

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
