DIN Pn64 Butt Welding Straight Through Type Electric Ball Valve

Ask Lasest Price
Brand Name :	GRAT
Model Number :	EK-000039
Certification :	IP67,CCC, ISO, CE,CNAS
Price :	USD $100.00/ Piece
Payment Terms :	LC, T/T, D/P, PayPal, Western Union
Supply Ability :	1000PCS/Week
Delivery Time :	3 working days

Add to Cart

Product Details
Company Profile

DIN Pn64 Butt Welding Straight Through Type Electric Ball Valve

DIN Pn64 Butt Welding Straight Through Type Electric Ball Valve

Product Description:

DIN Pn64 Butt Welding Straight Through Type Electric Ball Valve /IP67/ Fixed Ball Valve

Description:
Electric screw ball valve lock covers the services of large pressure drops and easy blocking to quickly switch

and cut off the medium of pipeline, whose superior product performance and cost-effective far exceeds

the competitive products of solenoid valve.

Specification:

Power supply	AC220V 50/60HZ
Body ratings	DN15-100
Medium Temp	≤220°C
Ambient Temp	≤50°C
Operating pressure	PN16, PN25, PN40
Action mode	Switch to cut off
Body connections	Flange type, connecting thread
Body material	Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB
Plug material	Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB
Leakage	Compliance with the standards ANSIB16.104 5
Seal type	Two-sided sphere seal
Applicable medium	Water, oil, gas
Protection level	IP67
Dead zone	0.5%
Repeatability error	0.5%
Manufacturing standards	JB/T8692-1998

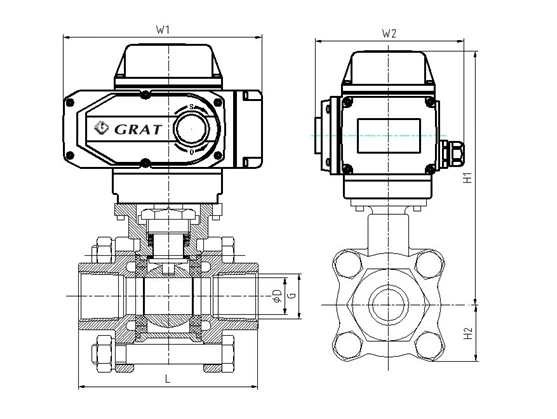

Pn64 Butt Welding Electric Ball Valve

DN	D	G	L	H1	W1	W2
8	8	14.3	65	177	196	145
10	10	18	65	177	196	145
15	15	22	72	188	196	145
20	18	28	85	190	196	145
25	24	34.5	91	200	196	145
32	30	43.5	110	205	196	145
40	38	49.5	122	212	196	145
50	48	62	145	220	196	145

Control Diagram

Model	Circuit	Model	Circuit
S	ON/OFF,no output signal	CPT	ON/OFF,output 4~20mA signal
MS	ON/OFF,output passive contact signal	PCU	Regulation,output 4~20mA signal
PIU	ON/OFF,output 0~1000Ω signal	G	ON/OFF,output passive contact signal
SP	ON/OFF,middle position control	H	ON/OFF,output passive contact signa

Packing & Shipping:

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
