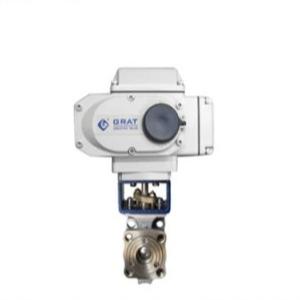

Stainless Steel Mini Wafer Type Ball Valve IP67 Thread Connection

Ask Lasest Price
Brand Name :	GRAT
Model Number :	EV-000082
Certification :	IP67,CCC, ISO, CE,CNAS
Price :	USD $100.00/ Piece
Payment Terms :	LC, T/T, D/P, PayPal, Western Union
Supply Ability :	1000PCS/Week
Delivery Time :	3 working days

Add to Cart

Product Details
Company Profile

Stainless Steel Mini Wafer Type Ball Valve IP67 Thread Connection

IP67 Thread Connection Stainless Steel Wafer Type Mini Ball Valve

Product Description:

Stainless Steel Wafer Type Mini Ball Valve /IP67/Fixed Ball Valve

Description:
Stainless Steel Flange Electrical Control Ball Valve

Electric screw ball valve lock covers the services of large pressure drops and easy blocking to quickly

switch and cut off the medium of pipeline, whose superior product performance and cost-effective

far exceeds the competitive products of solenoid valve.

Specification:

Power supply	AC220V 50/60HZ
Body ratings	DN15-100
Medium Temp	≤220°C
Ambient Temp	≤50°C
Operating pressure	PN16, PN25, PN40
Action mode	Switch to cut off
Body connections	Flange type, connecting thread
Body material	Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB
Plug material	Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB
Leakage	Compliance with the standards ANSIB16.104 5
Seal type	Two-sided sphere seal
Applicable medium	Water, oil, gas
Protection level	IP67
Dead zone	0.5%
Repeatability error	0.5%
Manufacturing standards	JB/T8692-1998

Installation size drawing

Stainless Steel Wafer Type Mini Ball Valve
Control Diagram

Stainless Steel Wafer Type Mini Ball Valve

Model	Circuit	Model	Circuit
S	ON/OFF,no output signal	CPT	ON/OFF,output 4~20mA signal
MS	ON/OFF,output passive contact signal	PCU	Regulation,output 4~20mA signal
PIU	ON/OFF,output 0~1000Ω signal	G	ON/OFF,output passive contact signal
SP	ON/OFF,middle position control	H	ON/OFF,output passive contact signa

Packing & Shipping:

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
