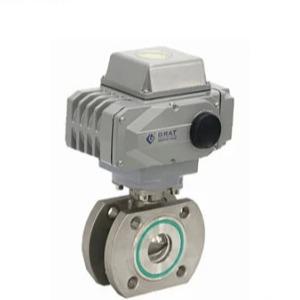

Straight Through Type Electric Actuated Ball Valve Stainless Steel Vacuum Ball Valve

Straight Through Type Stainless Steel Electricity Drive Vacuum Ball Valve

Product Description:

Electricity Drive Vacuum Ball Valve /IP67/ Fixed Ball Valve

Description:

Electricity Drive Vacuum Ball Valve features a robust construction with a body size ranging from DN15 to DN250 and

is capable of handling a medium temperature range of -80°C to 160°C without the risk of congelation.

This valve is well-suited for applications involving corrosive chemical liquids, such as acids, alkalis,

salts, chlorine gas, steam, and other aggressive substances

Specification:

Power supply	AC220V
Body size	DN15-250
Medium Temp	-80°C~160°C(no congelation)
Operating pressure	PN1.0~2.5(MPa)
Action mode	4-20mA Signal input feedback, 0-90° gyration
Action time	4~30S
Body connections	Flange
Body material	WCB, ZG1CrM0, ZG1Cr18Ni9Ti
Sealed material	PTFE
Actuator material	Casting aluminum alloy
Applicable medium	Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia,oxidant, reducing agent, corrosive chemical liquid

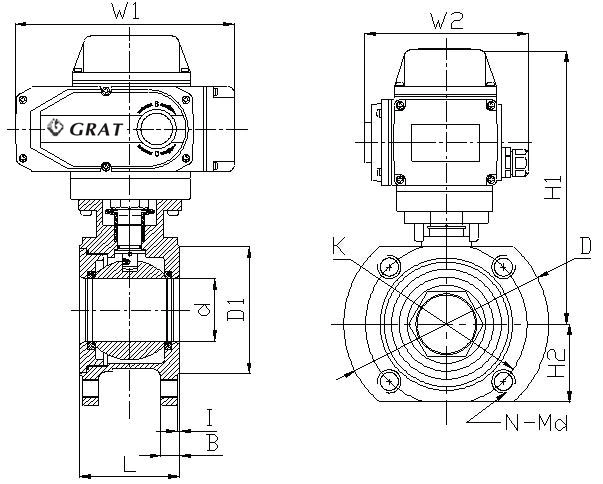

Installation size figure

Electricity Drive Vacuum Ball Valve

DN	L	D	K	D1	N-Md	B	I	H1	H2	W1	W2
15	35	95	65	46	4-φM12	9	2	234	196	145	196
20	38	100	75	56	4-φM12	12	2	242	196	145	196
25	42	110	85	66	4-φM12	12.7	2	218	196	145	196
32	52	133	100	78	4-φM16	14	3	231	196	145	196
40	61	145	110	87	4-φM16	15	3	238	196	145	196
50	73	160	125	99	4-φM16	16.7	3	251	196	145	196
65	92	180	145	118	4-φM16	17.2	3	265	196	145	196
80	109	195	160	136	8-φM16	19	3	298	255	184	255
100	140	215	180	156	8-φM16	18.5	3	310	255	184	255

The material of the main parts

Part name	Body	Bonnet	Stuffing box	Gland ring	Seat	Packing	Spanner
Material trademark	WCB ZG1CrM0 ZG 1Cr18Ni9Ti	WCB ZG1CrM0 ZG 1Cr18Ni9Ti	WCB 40Cr ZG 1Cr18Ni9Ti	WCB ZG1CrM0 ZG 1Cr18Ni9Ti	FEP	FEP	WCB

Applicable channeling medium

Medium state	Medium Temp.	Medium pressure	Medium characteristics	Medium concentration	Medium name
Liquid	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	Unlimited	Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent.
Gas	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	Unlimited
Mixture of liquid and solid	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	<60%

Control Diagram

Model	Circuit	Model	Circuit
S	ON/OFF,no output signal	CPT	ON/OFF,output 4~20mA signal
MS	ON/OFF,output passive contact signal	PCU	Regulation,output 4~20mA signal
PIU	ON/OFF,output 0~1000Ω signal	G	ON/OFF,output passive contact signal
SP	ON/OFF,middle position control	H	ON/OFF,output passive contact signa

Packing & Shipping:

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
