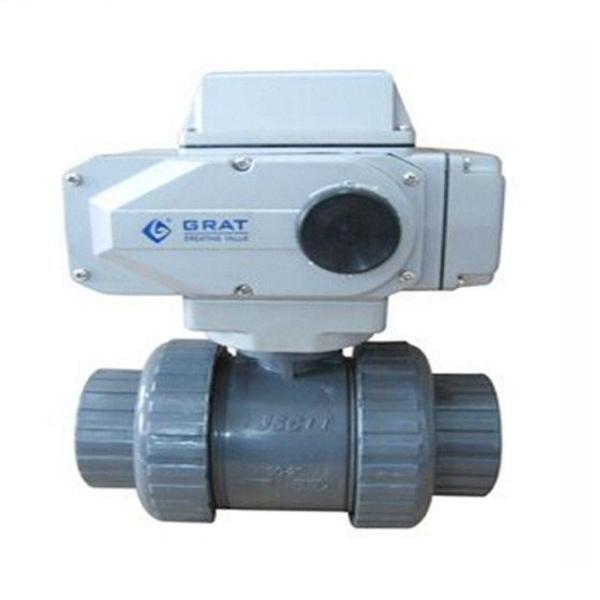

IP67 UPVC Ball Valve V Type Electric Actuated Ball Valve DIN Standard

Ask Lasest Price
Brand Name :	GRAT
Model Number :	EV104
Certification :	CCC, ISO, CE
Payment Terms :	LC, T/T, D/P, PayPal, Western Union
Delivery Time :	3 working days
Supply Ability :	1000PCS/Week
Price :	USD $170.00/ Piece

Add to Cart

Product Details
Company Profile

IP67 UPVC Ball Valve V Type Electric Actuated Ball Valve DIN Standard

UPVC Electric Actuated Ball Valve V Type Ball Valve

Product Description:

UPVC Electric Actuated Ball Valve/ IP67 /Relief Valve/V Type Ball Valve

Description:

UPVC Electric Ball Valve is widely applied in the industrial fields of acid alkali and chemical solution.The body with light weight and strong corrosion resistance is widely used in the piping system of pure water and raw drinking water drainage and sewage salt water and sea water.

Specification:

Valve size	DN15~DN100
Power supply	DC24V,AC220V,AC380V
Temp.	-15ºC-60ºC(no congealment)
Ambient temp.	-30ºC-60ºC
Body rating	0.1~1.6MPa
Purpose	On-off
Action time	4-30S
Applicable medium	Water, air, oil, corrosive chemical liquid
End connection	Flange, double union
Seal type	Soft seat
Shaft material	PVC
O-RING material	EPDM
Ring nut material	PVC
Body material	PVC
End material	PVC
O-RING material	EPDM
Sphere seal ring material	PTFE
Ball material	PVC
O-ring material	EPDM
Core seal bracket material	PVC
Ring material	PVC
Protection level	IP67
Installation angle	Install it in any angle. (Prefer to horizontal or inclined installation to extend the service life.)
Design and manufacturing standard	GB12237-89 AP16D
Flange standard	JB79 GB9113 ANSI B16.5 JIS B2212
Structure length standard	GB12221-89
Inspection standard	JB/T 9092 API598

Figure and connection size

Valve size		L	L1	L2	D1	D2	D3	D4	D5	H1	H2	W1	W2	Weight kg
mm	inch"	L	L1	L2	D1	D2	D3	D4	D5	H1	H2	W1	W2	Weight kg
15	1/2"	112	60	16	13	20.1	20.3	31	45	200	72	196	145	4.4
20	3/4"	132	73	19	18	25.1	25.3	37	55	200	88	196	145	4.6
25	1"	144	78	22	23	32.1	32.3	44	66	200	105	196	145	4.7
32	1-1/4"	165	87	26	30	40.1	40.3	54	82	200	131	196	145	4.9
40	1-1/2"	171	92	31	38	50.1	50.3	65	98	200	156	196	145	5.1
50	2"	200	112	38	48	63.1	63.3	79	120	200	192	196	145	5.7
65	2-1/2"	273	136	44	61	75.1	75.3	92	140	200	224	196	145	7.2
80	3"	303	158	51	69	90.1	90.3	108	160	240	256	255	184	9.3
100	4"	326	176	61	99	110.1	110.4	146	225	240	360	255	184	12.1

Connection diagram

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
